Gamma detection

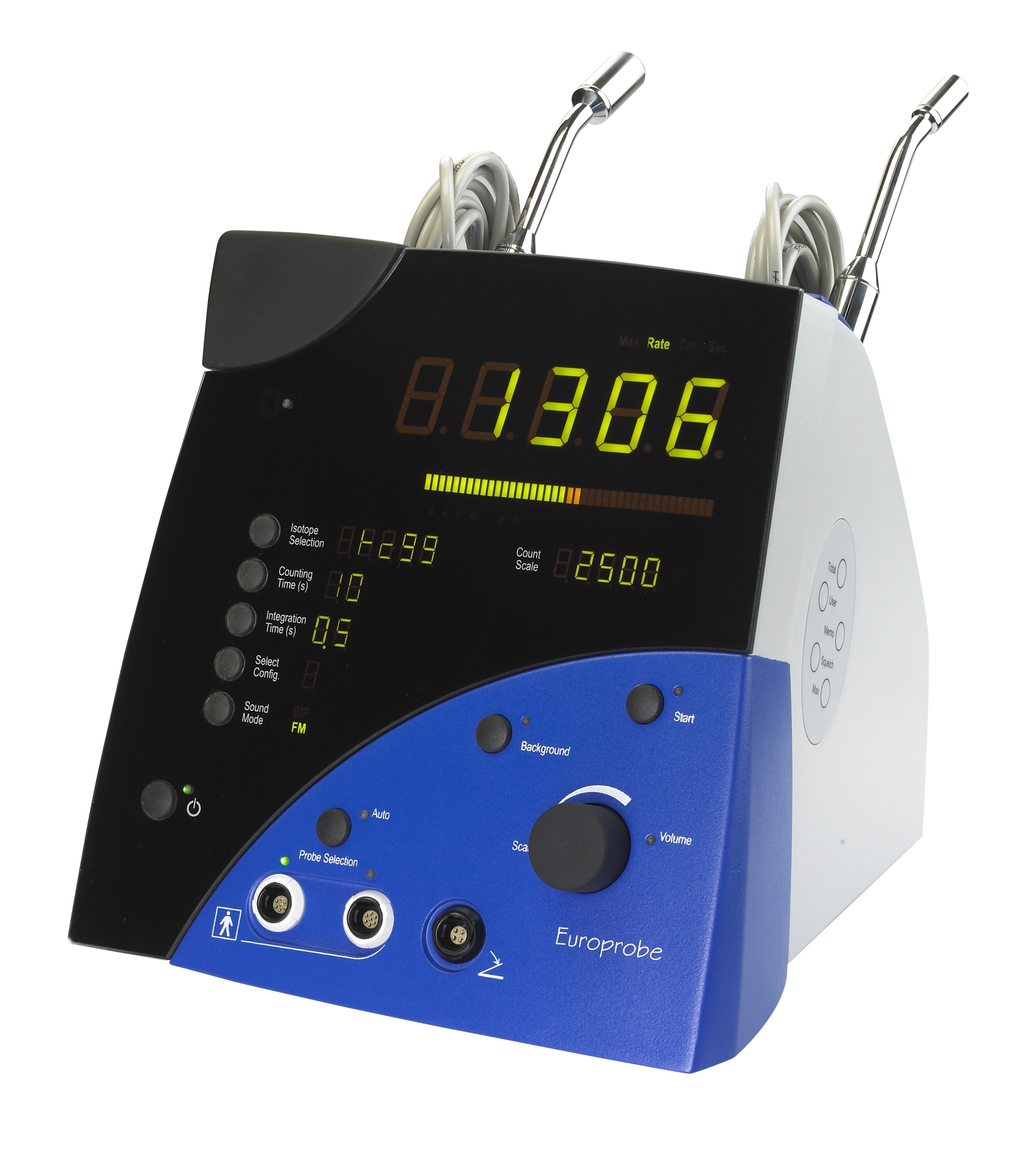

With a single readout module and numerous gamma probe options, the Europrobe 3.2 is a unique system that fulfills all needs of per and post-operative detection as well as per-cutaneous localisation within 7 major clinical fields: Breast, gynaecology, ENT, dermatology, endocrinology, urology and nuclear medicine.



The characteristics of the detector, its shape, size and sensitivity maybe adapted to any appropriate isotopes needed to meet clinical requirements. Every probe can be suited with an optional collimator.
All our probes are manufactured in biocompatible medical stainless steel, and a sterile biocompatible cover has been specially developed to suit the whole range.



Furthermore, the Europrobe probes are compliant with the IP68, ISO10993-5, ISO10993-10, ISO10993-11 biocompatibility standards.

Europrobe features

Main Features



Automatic switching to most common radioisotopes. (99mTc, 125I, 131I, 18F).
Customized user etting of energy window.
Easy system set-up.
No need for calibration .
No drift of the probe in time.
9 customized configurations + 1 default.

Europe: CE 0459 (G-Med: classe 2a)

USA FDA registered: 9032627



Technical specifications



Counting: 30 000 cps
Operating temperature: + 15˚C to 40˚C
Height: 245 mm
Width / Depth: 233 mm / 270 mm
Weight: 2 Kg
Consumption: 15 watts maximum
Power supply: 115/220 VAC F = 50Hz



Download the Europrobe Guide.

CdTe probes

Eurorad has developed a wide range of probes based on CdTe detectors, developed and manufactured internally.

Several standard models are available, but customised probes can also be produced on request.



The multiple benefits of CdTe:



Work at room temperature.
Operate at low voltage (maximum 150V).
Highly accurate and offer excellent energy resolution at 140 keV (99mTc).
Very good detection efficiency between 20 and 170 keV.
Availability of small probes adapted for small incisions.

Available in wireless Bluetooth version.

Possibility of offering customized probes.

Reference Type of probes Cut
Ø / Length (mm)
Form / Playback
SOE 3206 ROLL : Sensitivity > 50Cps/MBq - Not palpable not visible tumor location 6/187 Straight/Axial
SOE 3211 SLN – Sensitivity > 300Cps/MBq for a source of 57Co at 30mm in the air / Fwhm = 37mm 11/192 Curved/Axial
SOE 3211-D SLN – Sensitivity > 300Cps/MBq for a source of 57Co at 30mm in the air 11/194 Straight/Axial
SOE 3211-AC SLN – Sensitivity > 300Cps/MBq for a source of 57Co at 30mm in the air - With additional integrated collimator 15/198 Curved/Axial
SOE 3211-D-AC SLN – Sensitivity > 300Cps/MBq for a source of 57Co at 30mm in the air - With additional integrated collimator 15/199 Straight/Lateral
SOE 3211-14 SLN – Sensitivity > 1500 Cps/MBq – Fwhm = 44mm 14/194 Curved/Axial
SOE 3211-14-D SLN –Sensitivity > 1500 Cps/MBq – Fwhm = 44mm 14/199 Straight/Axial
SOE 3211-14-AC SLN – Sensitivity > 300Cps/MBq for a source of 57Co at 30mm dans l’air - With additional integrated collimator 18/200 Curved/Axial
SOE 3211-14-D-AC SLN – Sensitivity > 300Cps/MBq for a source of 57Co at 30mm in the air - With additional integrated collimator 18/201 Straight/Axial
SOE 3211-AF SLN – Sensitivity > 300Cps/MBq for a source of 57Co at 30mm in the air - Laparoscopic frontal detection 10/429 Straight/Axial
SOE 3211-AL SLN – Sensitivity > 300Cps/MBq for a source of 57Co at 30mm in the air - Laparoscopic lateral detection 10/429 Straight/Lateral
SOE 3211-AL-45 SLN – Sensitivity > 300Cps/MBq for a source of 57Co at 30mm in the air - Laparoscopic lateral detection at 45° 10/432 Straight/Lateral
SOE 3211-AF-BT SLN – Sensitivity > 300Cps/MBq for a source of 57Co at 30mm in the air - Laparoscopic frontal detection - Wireless 10/492 Straight/Axial
SOE 3211-AL-BT SLN – Sensitivity > 300Cps/MBq for a source of 57Co at 30mm in the air - Laparoscopic lateral detection - Wireless 10/493 Straight/Lateral
SOE 3211-AL-45-BT SLN – Sensitivity > 300Cps/MBq for a source of 57Co at 30mm in the air - Laparoscopic lateral detection at 45° - Wireless 10/495 Curved/Lateral

Characteristics:



Energy: 20-300 keV (Optimum efficiency: 20-170 keV)



Isotopes: 99mTc (140 keV), 125I (27 keV), 111In (171 & 245 keV)



Medical grade stainless steel

Csi probes

A pioneer in this field, Eurorad offers a very wide range of probes incorporating a CsI (Tl) scintillator coupled to an Si photodiode.



The multiple benefits of Csi:



Work at room temperature.
Offer a very good efficiency from 100 keV to 1 MeV.
Work with a low bias voltage unlike the PMT solution (typically 20V).

Available in wireless Bluetooth version.

Possibility of offering customized probes.

Reference Type of probes Cut
Ø / Length (mm)
Form / Playback
SOE 3216 SLN – Sensitivity > 800Cps/MBq for a source of 57Co at 30mm in the air - Fwhm = 43mm 16/199 Curved/Axial
SOE 3216-D SLN – Sensitivity > 800Cps/MBq for a source of 57Co at 30mm in the air - Fwhm = 43mm 16/201 Straight/Axial
SOE 3216-AC SLN - With additional integrated collimator 19/205 Curved/Axial
SOE 3216-D-AC SLN - With additional integrated collimator 19/207 Straight/Axial
SOE 3216-7 SLN – Sensitivity > 1700 Cps/MBq - Fwhm = 58mm 16/199 Curved/Axial
SOE 3216-7-D SLN – Sensitivity > 1700 Cps/MBq - Fwhm = 58mm 16/201 Straight/Axial
SOE 3216-7-AC SLN - With additional integrated collimator 19/205 Curved/Axial
SOE 3216-7-D-AC SLN - With additional integrated collimator 19/207 Straight/Axial
SOE 3216-11 SLN – Sensitivity > 800Cps/MBq for a source of 57Co at 30mm in the air - Fwhm = 38mm 11/197 Curved/Axial
SOE 3216-11-D SLN – Sensitivity > 800Cps/MBq for a source of 57Co at 30mm in the air – Fwhm = 38mm 11/199 Straight/Axial
SOE 3216-11-AC SLN - With additional integrated collimator 15/203 Curved/Axial
SOE 3216-11-D-AC SLN - With additional integrated collimator 15/205 Straight/Axial
SOE 3216-AC- BT SLN - With additional integrated collimator - Wireless 15/266 Curved/Axial

Characteristics:



Energy: 100 keV-1 MeV (Optimum efficiency: 140 keV-1 MeV)



Isotopes: 99mTc (140 keV), 131 I(364 keV), 18F (with a collimator, 511 keV), 111In (171 & 245 keV)



Medical grade stainless steel
